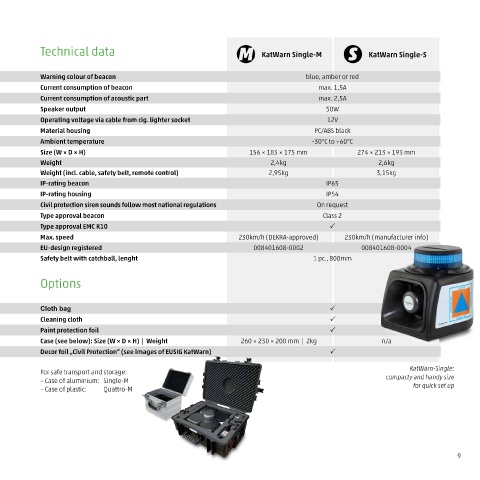

Page 9 - EUSIG-2.0 Info brochure vEN2.4
P. 9
Technical data KatWarn Single-M KatWarn Single-S
Warning colour of beacon blue, amber or red
Current consumption of beacon max. 1,5A
Current consumption of acoustic part max. 2,5A
Speaker output 50W
Operating voltage via cable from cig. lighter socket 12V
Material housing PC/ABS black
Ambient temperature -30°C to +60°C
Size (W × D × H) 156 × 183 × 175 mm 274 × 213 × 193 mm
Weight 2,4kg 2,6kg
Weight (incl. cable, safety belt, remote control) 2,95kg 3,15kg
IP-rating beacon IP65
IP-rating housing IP54
Civil protection siren sounds follow most national regulations On request
Type approval beacon Class 2
Type approval EMC R10 P
Max. speed 230km/h (DEKRA-approved) 230km/h (manufacturer info)
EU-design registered 008401608-0002 008401608-0004
Safety belt with catchball, lenght 1 pc., 800mm
Options
Cloth bag P
Cleaning cloth P
Paint protection foil P
Case (see below): Size (W × D × H) | Weight 260 × 230 × 200 mm | 2kg n/a
Decor foil „Civil Protection“ (see images of EUSIG KatWarn) P
KatWarn-Single:
For safe transport and storage:
– Case of aluminium: Single-M compacty and handy size
– Case of plastic: Quattro-M for quick set up
9
